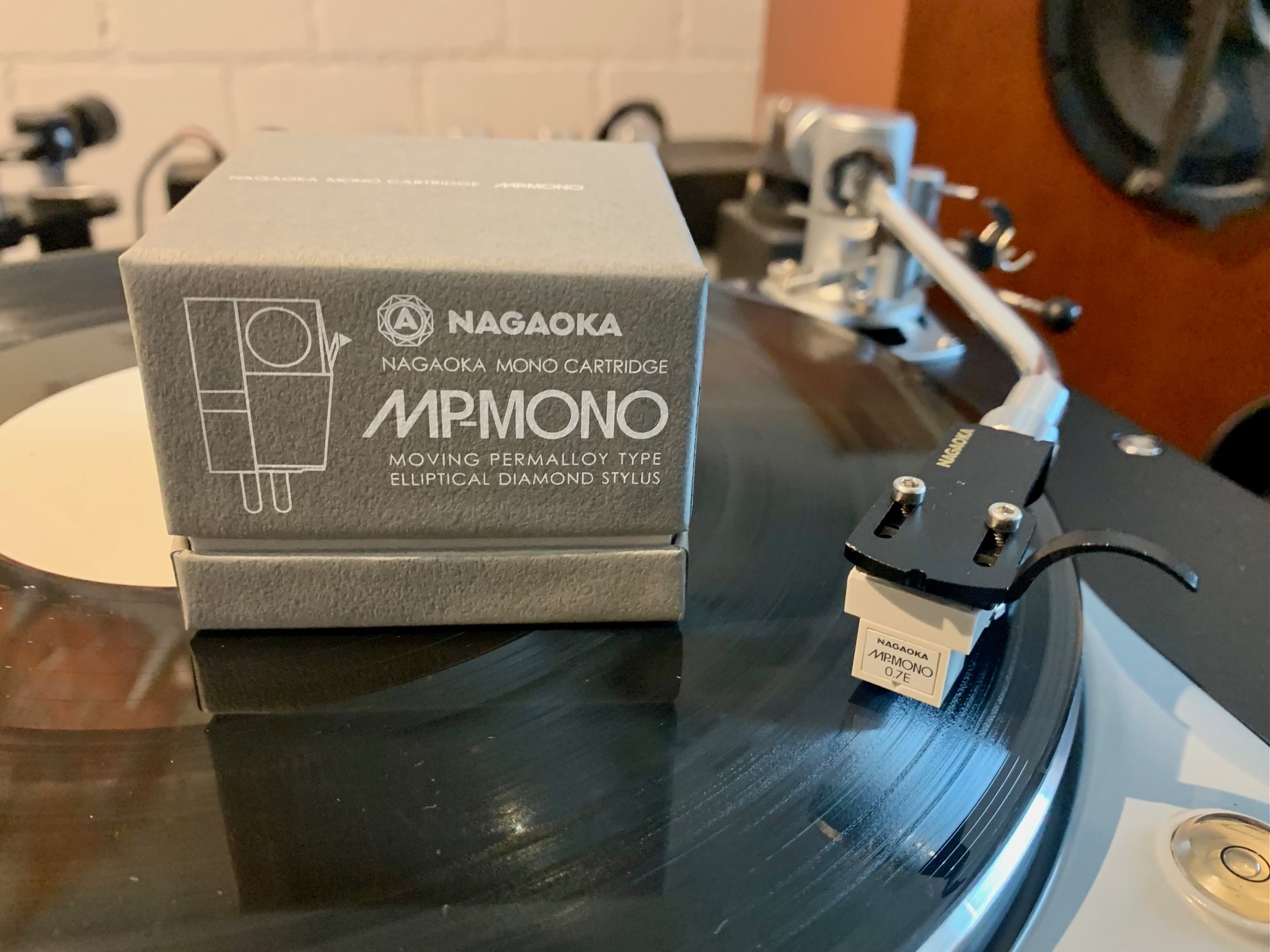

Nagaoka MP -MONO

True MONO Cartridge

With 0.7-mil stylus

For perfect playback of mono records from the 50s and 60s, a 1.0-mil stylus is also available.

Most mono cartridges currently available on the market have 0.6 to 0.7 mil stylus tips to accommodate modern record cutting.

The MP-MONO comes standard with a 0.7 mil stylus tip and was developed to play newly manufactured mono LPs.The sound is surprisingly fresh and doesn't sound "old-fashioned" at all. We tested it with our Triston Master Recordings mono LPs and were impressed!

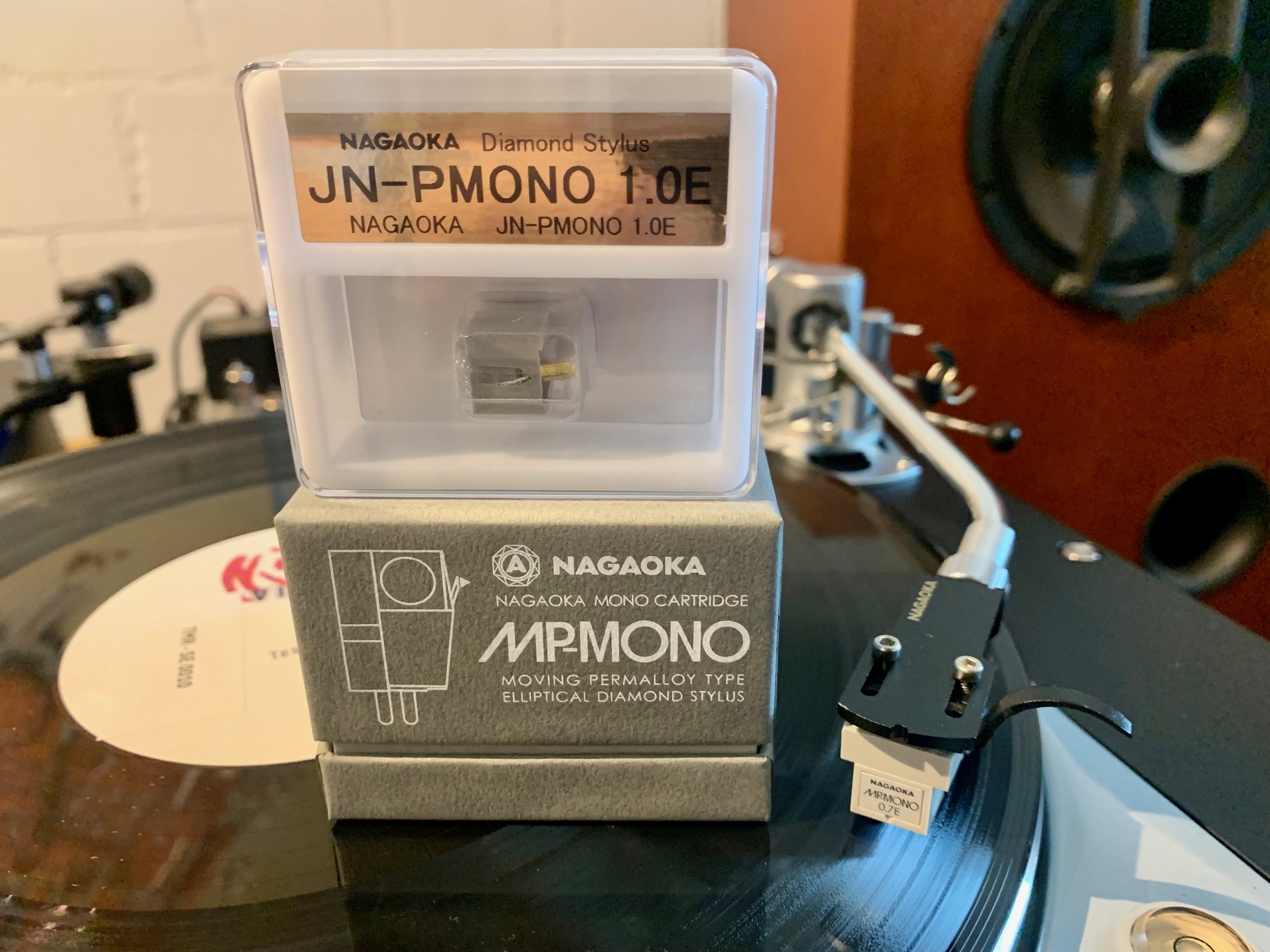

The 1 mil replacement stylus is a stylus that reproduces powerful sound with rich mid- and low-frequency ranges.In the days when mono records were widespread (mid-1940s to mid-1950s), 1 mil styluses were the standard stylus for record playback.The stylus inserts of both options are very easy to change, allowing you to select the right stylus for each of your mono records.

The Nagaoka MP 100 to MP 200 cartridges have the same weight as the MP Mono and also the same recommended tracking weight. This also makes switching between mono and stereo easy, provided the Nagaoka headshell is used.

Technical Datas

Stylus type: elliptical bonded diamond
Cantilever: Aluminum alloy
Output Level: 4.0mV (5cm/sec)
Output Balance: na 1.5dB or less
Tracking force: 1.5-2.0g
Dynamic Compliance: 6 x 10^-6 cm/dyne
Channel Separation: na 23dB/1kHz
Frequency Response: 20-20000Hz
Load Impedance: 47kOhm
Load Capacitance: 100pF
Cartridge Weight: 6.5g
Body Material : ABS resin

Price including 0.7 mil stylus: CHF 349.--

Stylus Replacment JPN-07 E: CHF 219.--

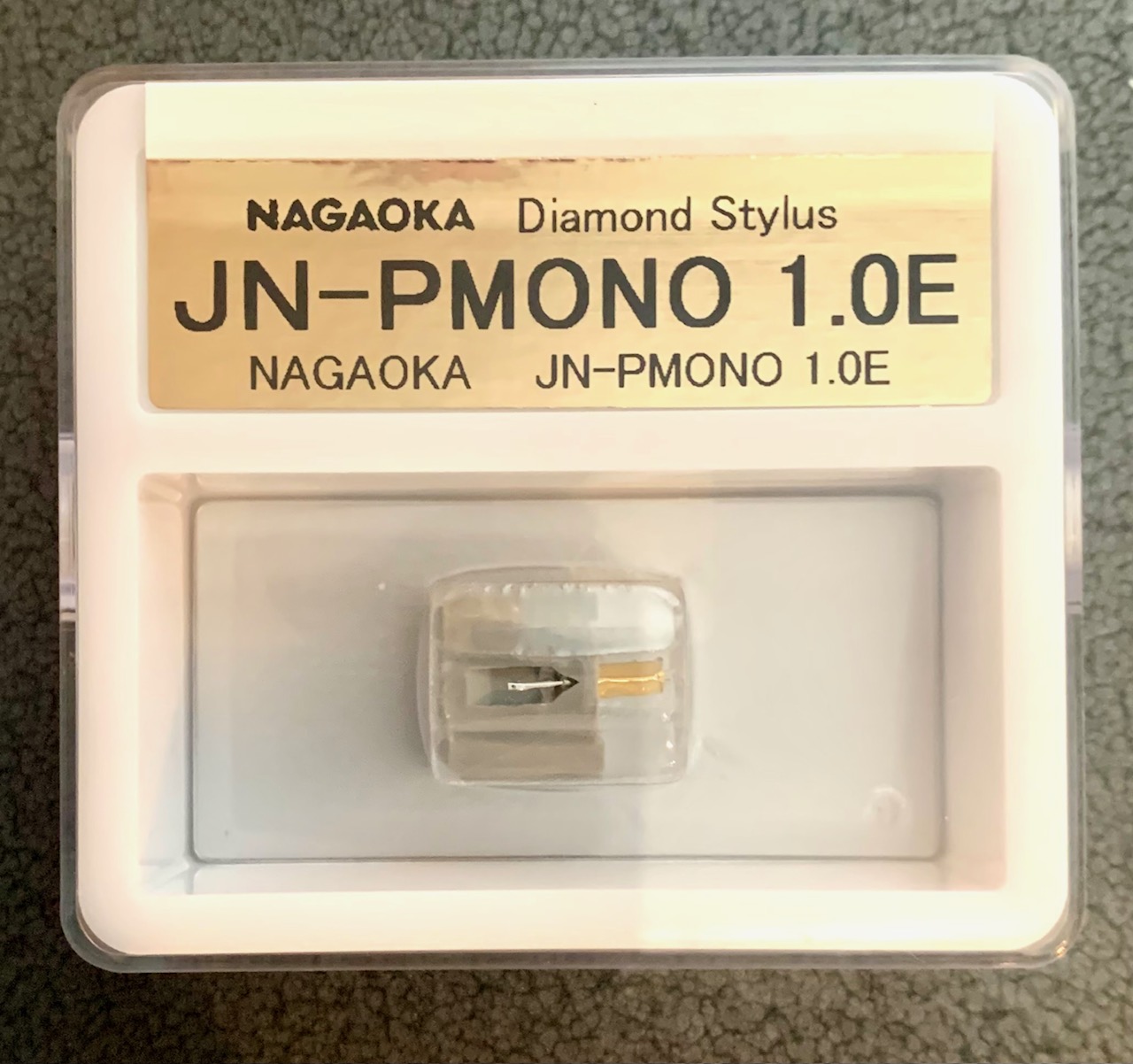

Stylus Replacment JPN-Mono 1.0 E: CHF 249.--

Please order by e-mail This email address is being protected from spambots. You need JavaScript enabled to view it.
