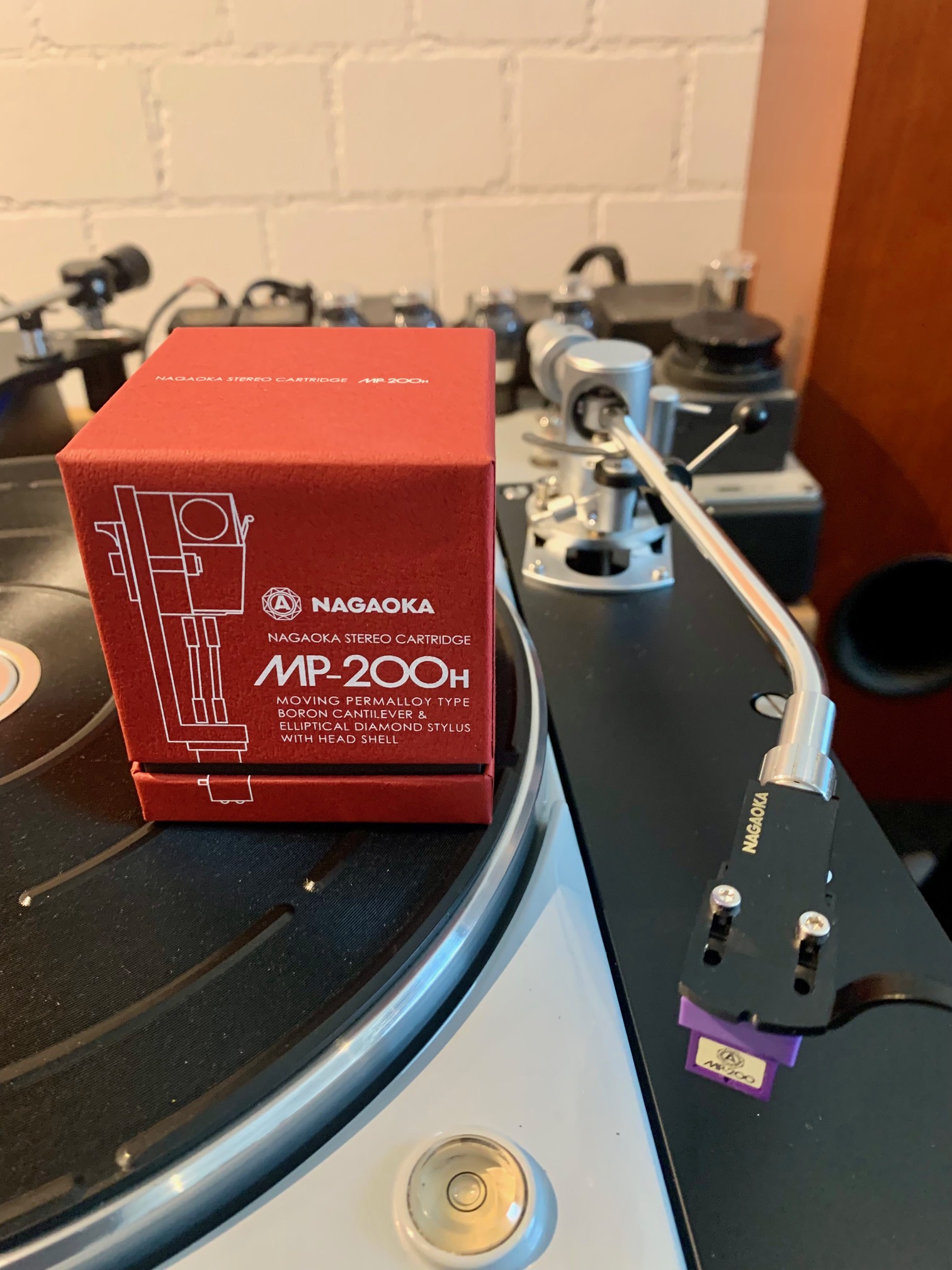

Nagaoka MP 200

Moving Magnet catridge.

The MP-200 pickup offers a smooth and precise sound trough the hole frequency range.

The technical highlights here are the use of a low-mass boron cantilever combined with a superfine polished elliptical diamond stylus tip. The cartridge’s internal generator is based around a powerful samarium-cobalt magnet and delivers a decent output of 4mV (1kHz, 5cm/s). There is nothing unusual in terms of loading required from the phono stage, which follows the moving magnet norm of 47kOhms or cartridge weight (6.5g).

Technical Specifications

Technical Specifications
Principle: MP - High Output (for the MM input)
Weight: 6.5 g
Height: 18 mm
Stylus Cut: Elliptical 0.4 x 0.7 mil
Cantilever: Boron
Frequency Response: 20 - 23,000 Hz
Output Voltage (1 kHz, 5 cm/sec): 4.0 mV
Channel Separation (1 kHz): > 25 dB
Channel Balance (1 kHz): < 1.5 dB
Dynamic Stylus Compliance: 7.2 x 10^-6 cm/dyne (measured at 100 Hz)
Suitable for medium to heavy tonearms
Recommended Tracking Force: 18 mN (15-20 mN)
Recommended Termination Resistance: 47 kOhm
Recommended Termination Capacitance: 150 - 200 pF
Replacement Stylus: JN-P200

Price CHF 479.--

Price includingNagaoka Headshell: CHF 539.--

Replacement Stylus: JN-P200, Price: CHF 299.--

 Test review in What Hifi
