Available in two version. GE eliptical and G round.
The sound of excellence !
In the late 1950s the iconic SPU cartridge range featured Ortofon's newly introduced low coil resistance and impedance concept. As a basis for reproducing superb high frequencies, this concept has been continually improved and refined in the decades since.

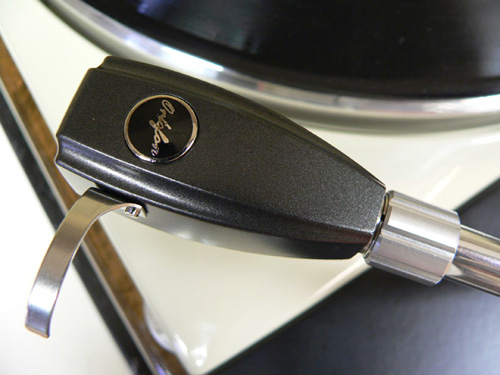

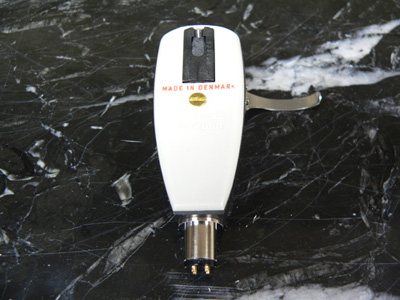

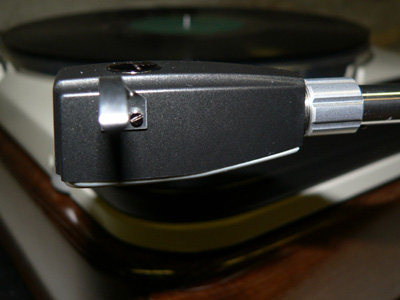

The latest version of the SPU Classic is the GM MK II. It exists in two version. With a nude elliptical stylus (GM E MK II) and with a nude spherical stylus (GM MK II).
The major improvement of the MK II versions is the grinded wood cartridge body. The result is a more stable sound. Also the connector has been improved.
This SPU Classic is the best buy Ortofon MC Pick up in the SPU series.
Price: CHF 1200.--
Technical Datas:
Output voltage at 1000 Hz, 5cm/sec. - 0.2 mV
Channel balance at 1 kHz < 1 dB
Channel separation at 1 kHz > 20 dB
Channel separation at 15 kHz > 10 dB
Frequency response - 20-20.000 Hz + 3/- 2 dB
Tracking ability at 315Hz at recommended tracking force *) - 60 µm
Compliance, dynamic, lateral - 8 µm/mN
Stylus type - Nude Elliptical
Stylus tip radius - r/R 8/18 µm
Tracking force range - 3.0-5.0 g (30-50 mN)
Tracking force, recommended - 4.0 g (40 mN)
Tracking angle - 20°
*) Typical value
Internal impedance, DC resistance - 2 ohm
Recommended load impedance > 10 ohm
Cartridge body material - Ground wood and resin composite
Coilwire material - High Purity Copper (OFC)
Cartridge colour - Black matte
Cartridge weight - 28 g
